PRESSLER Multi-layer Roller Hearth Heating Furnace, Leading Innovation and Development of Domestic Hot Stamping Production Lines
May 28, 2025 10:11 Jiangsu
With the rapid development of the automotive industry, the requirements for the quality and performance of automotive parts are becoming increasingly higher. Hot forming technology, as an advanced manufacturing process, has been widely used in the automotive industry. The hot forming heating furnace, as the core equipment of the hot forming process, provides reliable guarantee for the production of automotive parts.
There are three main types of heating furnace equipment on the market: roller hearth heating furnace, box heating furnace, and walking beam furnace.
Roller hearth heating furnace is suitable for continuous production of large batches and small varieties. The workpieces are heated evenly, without damage, and with small deformation, but it has high cost, large floor space, and high comprehensive energy consumption;
Box furnace is suitable for small batch and multi-variety production. It has low cost, small floor space, and low comprehensive energy consumption, but it has the problem of low production capacity.
Walking beam furnace is suitable for the production of heavier workpieces, especially indirect hot forming, because indirect hot forming requires the use of trays to carry workpieces to circulate in the furnace. Compared with roller hearth furnaces, walking beam furnaces have higher cost, frequent maintenance, and higher comprehensive energy consumption.
PRESSLER combines the advantages of roller hearth heating furnace and traditional box heating furnace to develop a multi-layer roller hearth heating furnace, which improves the efficiency of the heating furnace and takes into account the thermal energy utilization rate of the heating furnace.
PRESSLER is a complete production solution provider for automotive hot forming parts manufacturing. It has successfully developed multi-layer roller hearth hot pressing production line, laser blanking production line, vacuum hot forming production line, 3D five-axis laser cutting machine and other equipment and supporting software, achieving efficient production of lightweight hot forming parts, ensuring excellent product quality, and adapting to evolving production needs.

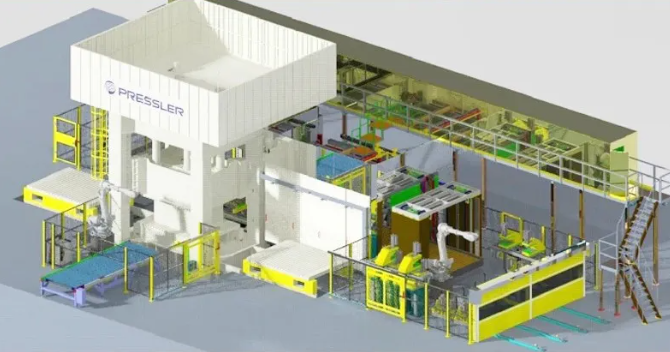

Multi-layer Roller Hearth Heating Furnace Production Line
Pressler® Self-developed
Space Saving
Intelligent & Reliable
Green & Energy Saving
Easy Maintenance
The core of PRESSLER's multi-layer roller hearth hot pressing production line lies in the multi-layer roller hearth heating furnace. The multi-layer roller hearth heating furnace combines the advantages of traditional box furnaces and roller hearth furnaces. It sets up 8 relatively independent furnace layers inside one heating furnace, which not only improves the efficiency of the heating furnace but also takes into account the thermal energy utilization rate of the heating furnace.
5 Major Technical Advantages
More Powerful Functions
Fast Cycle & High Capacity
Cycle time: 3-4 strokes/min, single line: 1 million strokes/year
Reliable Operation
Over 2000 hours of failure-free operation, defect rate less than 0.3%
Green & Low Carbon
Servo + controlled atmosphere furnace + energy information management, total operating energy consumption: 400 kWh/ton
Cost Reduction
Compared to imported lines, cost reduction of over 50%
Intelligent
Automatic loading/unloading, intelligent central control, intelligent information management system
Multi-layer Heating Furnace Features
8 Layers 2 Zones
Independent circulation for each layer, separate temperature control for each zone
Double Layer Shield
Prevent heat loss and leakage
Real-time Monitoring
Temperature control accuracy ±1°C, stable, efficient and intuitive
Unique Interlayer Curtain Door Cylinder Structure
Compact internal combination with unique interlayer curtain door cylinder structure

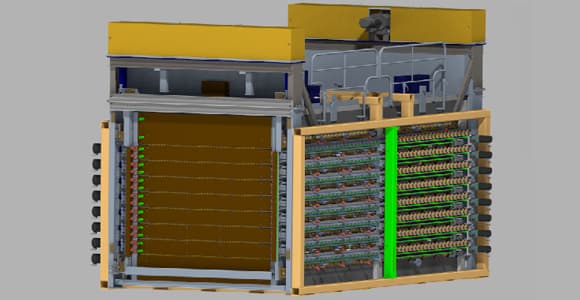

Multi-layer Roller Hearth Heating Furnace
VS
Single-layer Roller Hearth Heating Furnace
| Furnace Type | Single-layer Roller Hearth Heating Furnace | Multi-layer Roller Hearth Heating Furnace |
|---|---|---|
| Floor Space Length | >30m | <8m |
| Operating Energy Consumption | High | Low |
| Material Deviation | Shorter materials are more prone to deviation | No deviation |
| Material Abnormality Handling | Very long processing time | Easy to handle |
| Equipment Cost Comparison | High | Low |
| Hot Pressing Parts Production Cost | High | More than 20% lower than competitors |
