FLP30190-A 3D Five-Axis Laser Cutting Machine
FLP30190-A 3D five-axis laser cutting machine is a rapid cutting equipment specifically for automotive hot-formed parts. It offers high cutting quality, safety, and stability, suitable for 24-hour mass production.
360° Anti-collision Function
Cutting head anti-collision device effectively prevents cutting head damage when colliding with workpieces or fixtures, protecting equipment safety.
Adaptive Zoom Function
Cutting head automatically adjusts focus according to material thickness to ensure cutting quality and improve processing accuracy.
Teaching Function
Programmable teaching function supporting point, line, arc, polygon and other trajectory programming with simple and intuitive operation.
Timing and Counting Function
System automatically records processing time and workpiece quantity for production management and efficiency statistics.
One-key Calibration Function
When the force arm is within 200mm range, the system can automatically perform one-key calibration with simple operation.
3D Coordinate Transformation Function
Supports CAM programming, one program can be applied to multiple devices, improving programming efficiency.
Power Control Function
Automatically adjusts power according to tool tip position to ensure optimal balance of cutting quality and speed.
Fast Search Function
Processing head quickly and automatically searches and positions workpieces, improving processing efficiency.
3D Path Compensation Function
Automatically compensates spatial curves to improve processing efficiency and support spatial avoidance.
High-speed Smooth TCP Function
Automatic tool tip compensation for smoother paths, reduced tool attitude changes, and improved processing quality.
Equipment Main Structure

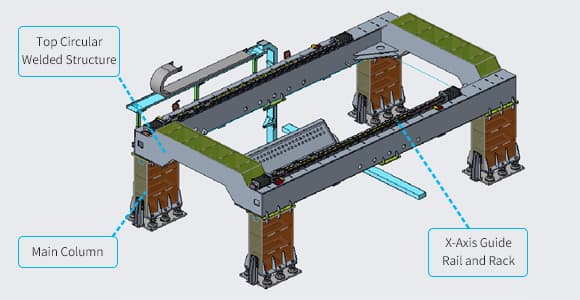

Machine Bed
The base adopts a high-gantry structure, mainly composed of a top ring-shaped welding structure and four large columns. Easy to install and sturdy and stable structure.

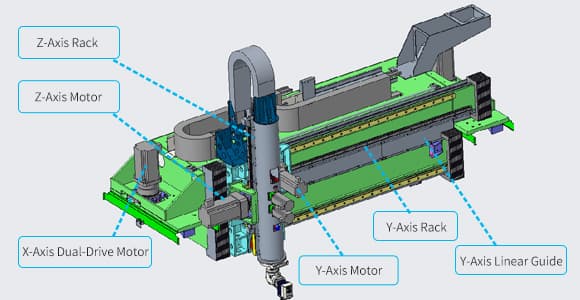

Crossbeam and Z-axis
The crossbeam uses a large-section welded aluminum beam, possessing high strength and stronger torsional resistance.

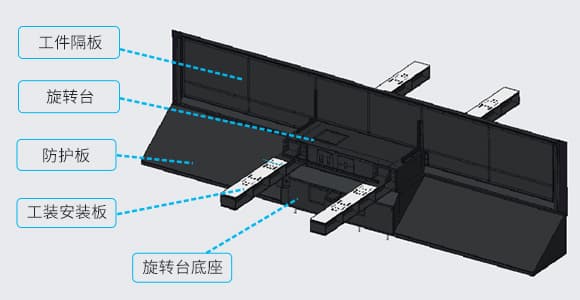

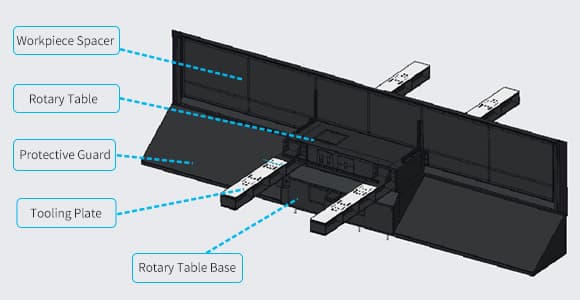

Dual-station Rotary Table
The rotary table uses an imported brand, offering higher positioning accuracy and repeatability. The rotary table rotation diameter is 5080mm.

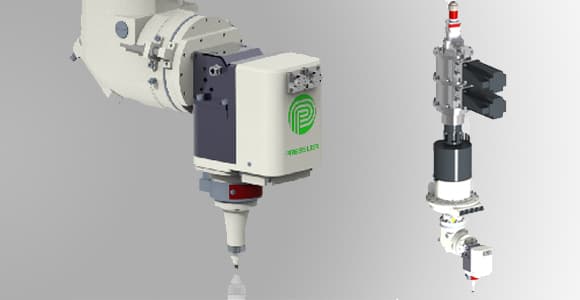

AC Components
- Electrical and gas slip rings ensure the cutting head can rotate n*360° infinitely.
- Autonomous gas slip rings simultaneously ensure airtightness and gas flow with higher reliability.
- The cutting head features anti-collision function to effectively prevent equipment damage.
- The cutting head has adaptive zoom capability to meet cutting requirements for various plate thicknesses.
Pressler Innovative Solutions
Adopting a high-gantry dual-drive structure, the high-strength welded aluminum crossbeam, optimized through finite element analysis, gives the equipment higher reliability in precision.
The meticulously calculated high-rigidity transmission system provides the equipment with excellent motion rigidity, ensuring cutting precision during high-speed cutting.
The exchange table adopts a dual-station rotary workbench method, ensuring stable operation and higher efficiency.
The base bed adopts an integrated ring beam structure, formed by welding steel plates. The ring beam can be hoisted as a whole, offering strong rigidity, good stability, and convenient installation.
The fully enclosed design incorporates multiple safety circuit interlocks and automatic monitoring to ensure the safety of personnel and equipment during processing. The loading area uses a safety light curtain + safety scanner for dual protection.
